Hydro Cooling Container AP-HC20 Support 210 Antminer Hydro Miners Large Scale Mining

Price range: $90,500.00 through $104,500.00

The AP-HC20 is a 20-foot Hydro cooling container designed to house 210 Antminer S21 Hydro and S19 Hydro miners, providing efficient coolant circulation to maintain optimal performance in large-scale mining farms.

AP-HC20
Manufacturer Warranty

Trusted By

Description
Additional information

Hydro Cooling Container AP-HC20

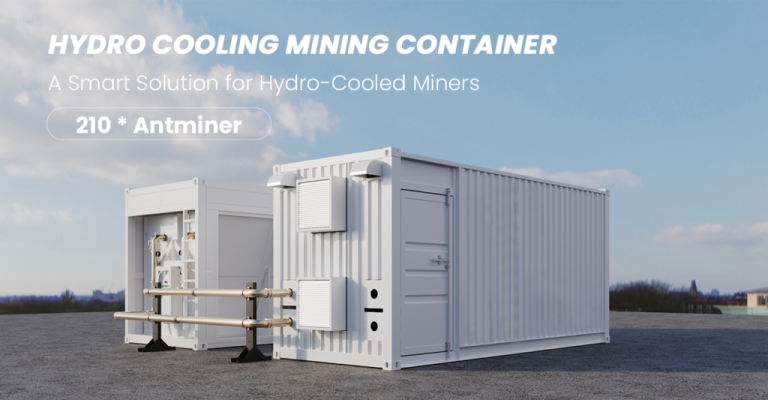

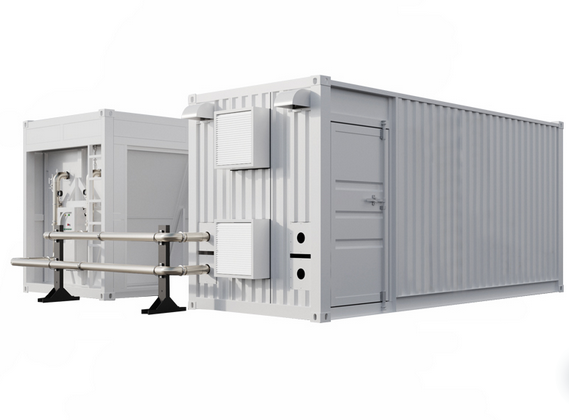

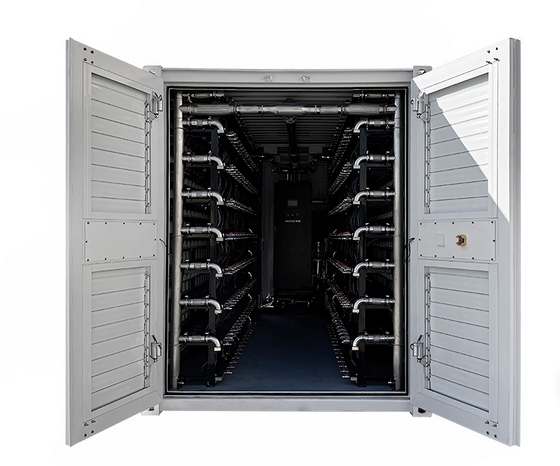

Hydro Cooling Container AP-HC20 is a 20-foot hydro cooling solution designed for large-scale cryptocurrency mining farms. It can house 210 Antminer S21 Hydro and S19 Hydro miners, providing precise coolant circulation at the ideal pressure, temperature, and flow rates to ensure optimal performance and system stability. This combination is the perfect choice for maintaining stable temperatures and high performance in cryptocurrency mining operations, ensuring that your hardware operates at peak efficiency around the clock.

The container includes a control cabinet for managing pump station operations and real-time sensor monitoring, along with a power distribution cabinet for seamless energy management. For maximum efficiency, the AP-HC20 pairs with a dry cooling tower container equipped with ten high-capacity fans, offering a cooling capacity of up to 500kW.

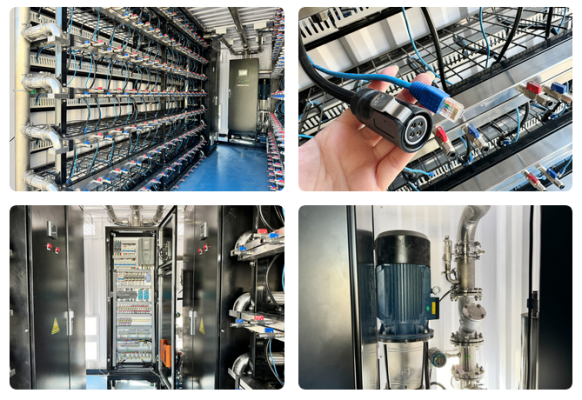

AP-HC20 Product Detail:

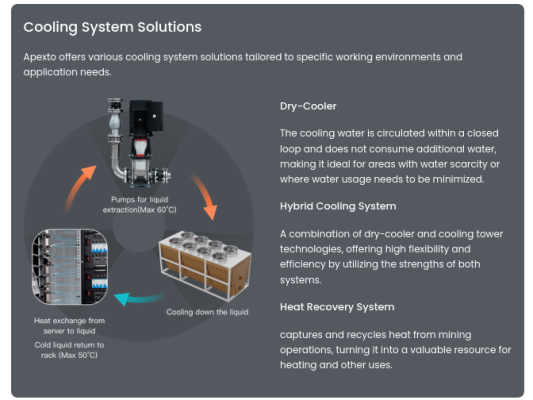

Heat Recovery System:

Our product also offers a heating version. If you need heating, we provide it through a customized CDU (Cooling Distribution Unit) integrated into the hydro cooling cabinet. This versatile solution provides efficient, sustainable, and reliable heating performance for a wide range of applications.

Application Scenarios:

Specification:

1. AP-HC20

Size	6058/2438/2896
Rack	7 Rows and 15 Columns Per Group
Input Voltage	Three-phase 380-480V 50/60Hz
Max Power Load	1,400kW
Ambient Temperature	-25℃~35℃
Capacity	210*S19/S21XP/S21 Hydro
Network	12*100M bps Ethernet Switch
Cooling System	Dry Cooler
Inlet and Outlet Temp	50/60℃
Input Voltage	Three-phase 350-480V 50/60Hz
Output Voltage	Three-phase 350-480V 50/60Hz
Certification	CE/UL

2. Dry Cooler

Cooling Capacity	1400kW (-30℃-45℃)
Input Voltage	Three-phase 350-480V 50Hz/60Hz
Power Consumption	3kW *10
Net Weight	4T
Noise	<68dB(A)@10m
Container Certification	China Classification Society Certification
	Leak Detection/Remote Control/Temp Control
Function Description	Remote Monitoring/Automatic Alarm/Constant Pressure Control

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
