Hydro Cooling HC40-S Container Series Support 210 Antminer Hydro Miners

Price range: $115,000.00 through $130,000.00

The Fog Hashing Hydro Cooling Container is an advanced solution tailored for large-scale mining operations, offering efficient cooling and robust performance.

Fog Hashing HC40-S
Manufacturer Warranty

Trusted By

Description
Additional information

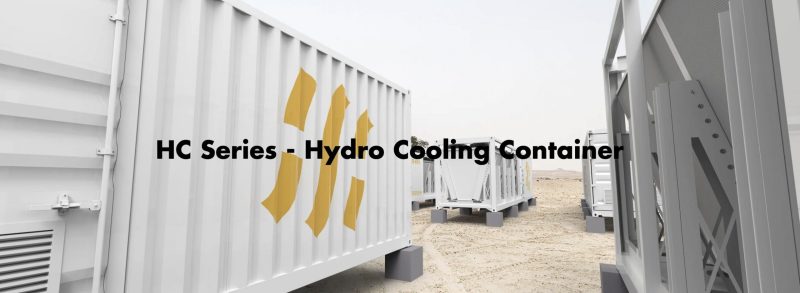

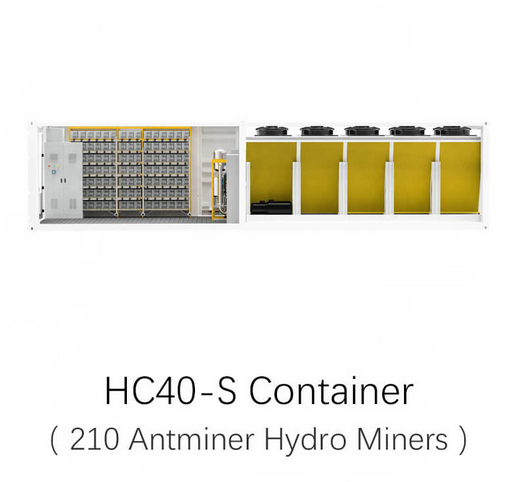

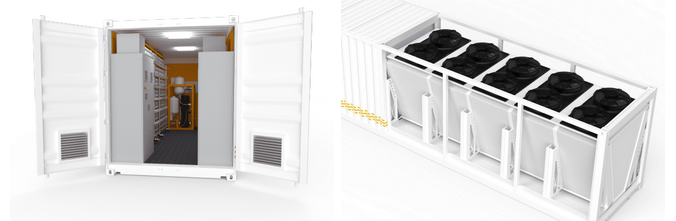

Hydro Cooling HC40-S Container

Hydro Cooling HC40-S Container is incorporates a range of efficient features from the H200 series Hydro Cooling equipment, including single-circuit design, stainless steel pipelines, coolant quality monitoring, and a high-capacity circuit system. This container provides reliable heat dissipation, simplified maintenance procedures, and a convenient mining operational environment.

Product Overview:

Deploy based on container.
One container can hold 210 Antminer hydro miners max.
Target Miner: Bitcoin Miner S19/21 hydro.
Total load: 1400kW
Equipped with 1400kW smart CDU.
Integrated dry cooler.
Type of container: 40HQ
Design heat dissipation: 1400kW@30℃ ambient temp .
Humidity: 5-80%
High air volume fans: 10 PCS.

Specification:

1. HC40-S Container

Size	12192(L)2438(W)2896(H) mm
Rack	Rack 7 rows and 15 columns per group
Input Voltage	3-phase 380-480V 50/60Hz
Power Capacity	1400kW
Operating Temp	-10-45℃
Capacity	210 S21/S19 hydro miners
Network	100Mbps Ethernet Switch & 1000Mbps main Switch
Cooling system	Dry cooler
Inlet and Outflow Temperature	50/58.5℃

2. HC40 Container Dry cooler

Cooling Capacity	1200 kW@30℃
Input Voltage	3-phase 350-415V 50Hz/60Hz
Fan Power	4.1 kW *10
In and Out Temperature	60/50°C
Spray Pump Power(optionl)	1kW
Dry Weight	3600kg
Wet Weight	4600kg
Noise	＜76 dB(10m)

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
