Hydro Cooling Kit H200-M-2U Support 20 Units Whatsminer M63 M63S Hydro Miners

Price range: $2,950.00 through $14,400.00

Hydro Cooling Kit H200-M-2U efficiently cools up to 20 Whatsminer M63/M63S Hydro miners with advanced hydro cooling technology.

Fog Hashing H200-M-2U
Manufacturer Warranty

Trusted By

Specification

Description
Additional information

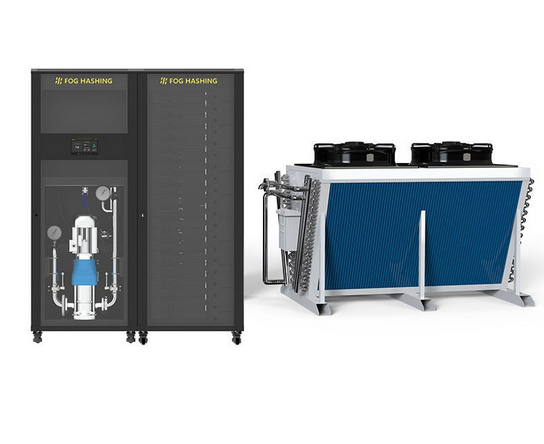

Hydro Cooling Kit H200-M-2U

Hydro Cooling Kit H200-M-2U is a Hydro Cooling equipment specifically designed for Bitcoin mining. Whether you are a professional miner or a beginner, Hydro Cooling Solution is the ideal choice to enhance mining efficiency.

Features:

200kW Sufficient Cooling Capacity

Meet the heat dissipation demand of hydro cooling mining system

Compatible with Whatsminer/Antminer Rack System

42U modular rack system design

Designed for Bitcoin Mining Heat Recovery

Solution designed according to heating needs, optional dry cooler or cooling tower.

Specification:

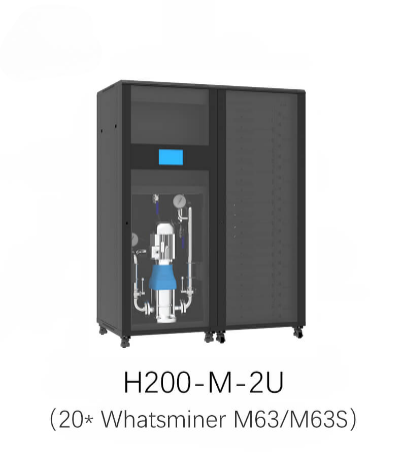

H200-M-2U

Size	800mm(W)2100mm(H)1050mm(D)
System Power Load (MAX)	200kW
Miner Capacity	20 Whatsminer M63 M63s
Input Voltage	3-Phase 380V-415V, 50/60Hz
PDU	20 Port SA2-30 Smart PDU
Network	1000M Network Switch
Operation Temperature	-25℃~45℃
Operating Humidity	5%~95%RH
Water Manifold	Stainless Steel
Hose	PE/PTFE Hose + Quick Connects

2. H200-CDU

Size	800mm(W)2100mm(H)1050mm(D)
Cooling Capacity	200kW
Power	3.5kW
Input Voltage	3-Phase 380V-480V, 50/60Hz
Cooling Medium	Pure water/Soften water+Antifreeze +Corrosion Inhibitor
Inlet/Outlet	10°C (Normal) 14°C (High Performance)
Rated Flow Rate	20m³/h
Operating Temperature	-25℃~45℃
Operating Humidity	5%~95%RH
PLC System	Constant flow control with pressure regulation
Communication Method	Modbus-RTU,TCP/IP
Design Pressure	0.3MPa

3. H200-Dry Cooler

Model	FHWDC200
Module	Dry Cooler V Type
Cooling Capacity	200kW
Wight(Empty Load)	800KG
FANs	2
Connection	DN50
Fluid	Coolant
Fluid flowrate	20m³/h
Inlet/Outlet Temperature	55℃/40℃
Ambient temperature	35℃
Fin/Tube Materials	304 Stainless steel，Al-mg/AI
Operating/Maximum Pressure	0.3MPA/1.6MPA

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
