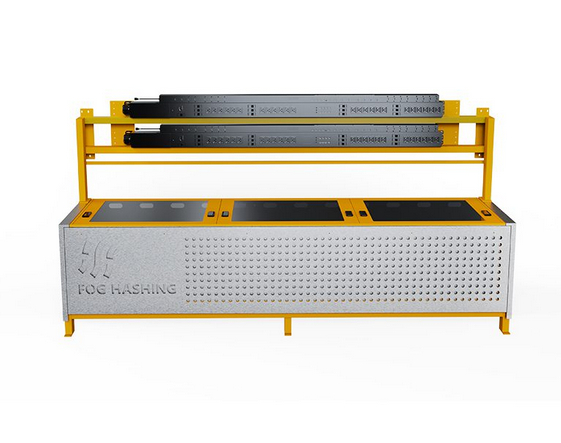

Immersion Cooling Tank B24D Crypto Mining Warehouse Deployment Solutions Supports 24 Antminers Or 30 Whatsminers
Price range: $2,300.00 through $11,199.00
Fog Hashing’s B24 immersion tank supports 24 Antminers or 30. Whatsminers inside, and all of these immersion systems are all-in-one designs. Deployment support.
- Fog Hashing B24D 120kW
- Manufacturer Warranty
Trusted By

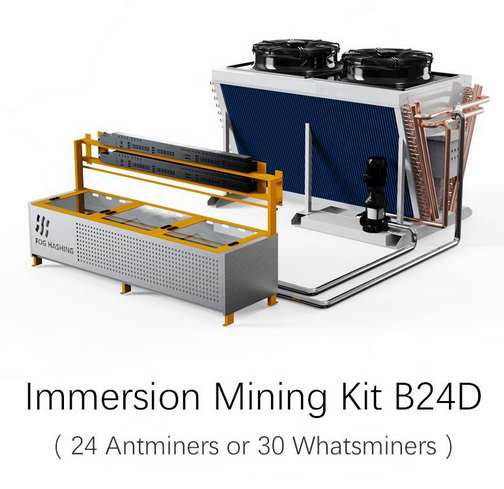

Immersion Mining Kit B24D
Immersion Mining Kit B24D tank supports 24 Antminers or 30 Whatsminers inside, and all of these immersion systems are all-in-one designs.
Precise liquid flow design | Ultra stable | Cost-effective | Highly integrated
Designed for independent deployment
- One B24D with one dry cooler, Supports up to 24 Antminers or 30 Whatsminers
- All-in-one design with built-in PDUs, network switches, sensors, and controllers
- High density and space saving.
Single Circulation And Easier Deployment:
- Single-loop circulation
- Integrates smart PDUs and networking
- Integrates circulation pumps and piping
- Deployment is complete with only the installation of tubing and wires
Specification:
| B24D Tank | |
| Outer size | 2486*746*530mm |
| Input voltage | 3-phase 350-480V 50/60Hz |
| Output voltage | Single-phase 200-277V 50/60Hz |
| Cooling capacity | 120kW@35°C |
| Operating temp | -10°C – 40°C |
| N.W | 172kg |
| Coolant volume | 750L |
| Inlet and outflow temperature | 45/65°C |
| Power load (max) | 120kW |
| Capacity | 24 Antminers or 30 Whatsminers |
| External cooling | Dry cooler/water cooling tower |
| Dry Cooler (EC Fan) | |
| Outer Size | 2186*1874*2100 |
| G.W. | 769kg |
| Input Voltage | 3-phase 350-480V 50/60Hz |
| Cooling Capacity | 120kW@35°C |
| Max Power Load | 4kW |
| Air Volume(m³/h） | 38299 |
| Noise | 65dB(A) (@25°C,16m) |
Customized From 100kW To 100MW:
For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
| Specification | 120kW Heat Exchange, B24 Cooling Tower (120kW@35°C), B24 Dry Cooler (120kW@35), B24 Tank, B24 Tank+Cooling Tower+PDU, B24 Tank+Dry cooler+PDU |
|---|
