Immersion Cooling System MC10 Container M20 Tank × 4 Support 80 Whatsminer M56 M66

Price range: $65,270.00 through $80,060.00

Immersion Cooling System MC10 is designed for Whatsminers. It can support 80 M56/M66.

Fog Hashing MC10
Manufacturer Warranty

Trusted By

Specification

Description
Additional information

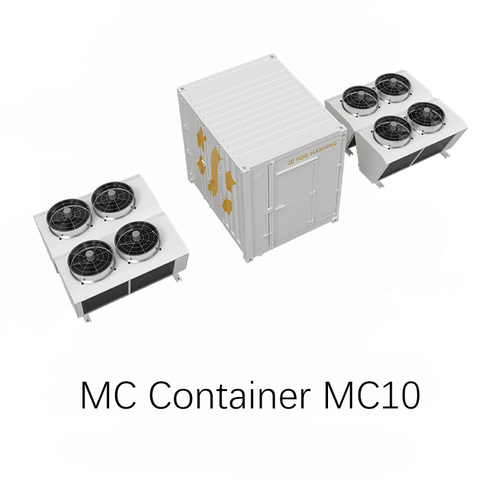

MC Container MC10

MC Container MC10 is structures which have fast setup, transportation easiness, high insulation and easy montage. Container systems presents high quality life space.

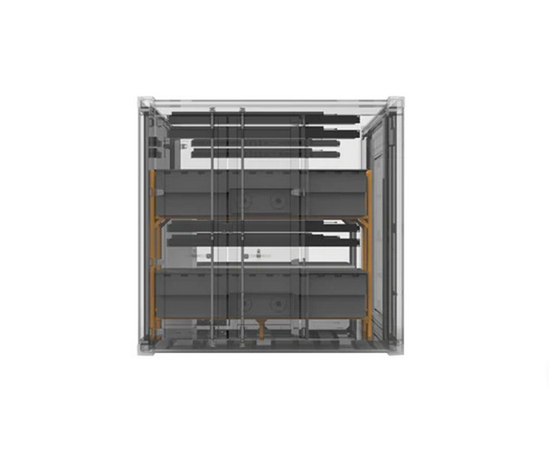

M20 Tank x 4
Can accommodate 80x M66/M56 miners inside.
Includes LED Lighting System, Ventilation System, Air Filter, Remote Temperature Sensors, Remote Smoke Sensors, CCTV.
Supports remote monitoring of the liquid cooling system (liquid level, temperature, voltage, etc.).

Specification:

Outer size	299124382591
Operating Weight (T)	6
Coolant Volume (L)	3000
Cooling Mode	Single loop
Miner Capacity	80 M66/M56
Tank Quantity	M20 Tank * 4
Ambient Temperature	-25°C~ 55°C
Input Voltage	3-phase 350-480V 50/60Hz
Max Power Load (kW)	658
Output Voltage	3-phase 350-480V 50/60Hz
Safety Certification	CE/UL
Operating Power(kW)	31
Power Distribution Cabinets(A)	1000A*1
Smart PDU	4
Smart Meter	√
Cooling Capacity(kW)	560
Cooling Type	Dry cooler / Closed water cooling tower
Max Inlet Temperature (℃)	47
Max Outlet Temperature (℃)	60
Design Reference Temperature (℃)	30
Container Certification	China Classification Society Certification
Container Components	Including LED Lighting System, Ventilation System, Air Filter, Remote Temperature Sensors, Remote Smoke Sensors, CCTV
Remote Management	Support remote liquid cooling system monitoring (liquid level, temperature, voltage, etc.)
Service Lifecycle	10 years

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
