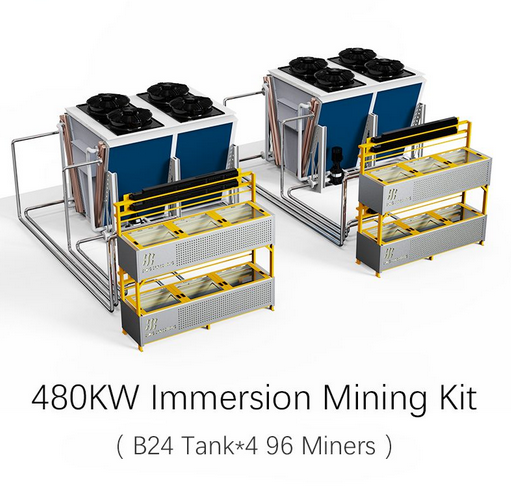

480kW Immersion System B24 Tank × 4 Supports Up To 96 Antminers Or 120 Whatsminers

Price range: $41,440.00 through $44,980.00

We provide scalable quantities of B24 Tanks to accommodate projects ranging from 100kW to 100MW. Our solutions are turnkey and expandable to fit your specific needs.

Fog Hashing B24 480kW
Manufacturer Warranty

Trusted By

Specification

Description
Additional information

B24 480kW Immersion Cooling System

B24 480kW Immersion Cooling is a more efficient cooling system than dry coolers at extreme ambient temperatures. Expandable solution options for Closed-Water Cooling Tower.

System Overview:

Capacity: Accommodates up to 96 Antminers or 120 Whatsminers.
Cooling Performance: Delivers overclocked hashrate with a robust 480kW cooling capacity.
Cooling Mechanism: Features a dual-loop circulation system with separate CDUs for optimal cooling.
Infrastructure: Includes smart PDUs, comprehensive networking infrastructure, and integrated circulation pumps and piping.
Cooling Options: Comes with a standard dry cooler, with an optional closed water cooling tower available.
Design Benefits: High-density configuration, space-saving design, easy deployment, and remote management support.

Specification:

Qty of B24 Tanks	4
B24 Outer Size	2486746530mm
Input Voltage	3-phase 350-480V 50/60Hz
Output Voltage	Single-phase 200-277V 50/60Hz
Cooling Capacity	480kW@35°C
Ambient Temp	-25°C ~ 55°C
Net Weight (Tank)	688kg
Coolant Volume	3000L
Max Inlet/Outlet Temp	45/65°C
Max Power Load	40kW
Network	100Mbps Ethernet switch
Pipe Diameter	DN65/DN80
Dry Cooler	FHDC480

Dry Cooler (EC Fan)
Model	FHDC480
Cooling Capacity	480kW
Circulation Medium	Water/Glycol
Input Voltage	3-phase 350-480V 50/60Hz
Max Power Load (kW)	16
Max Inlet/Outlet Temp (°C)	40/45
Reference Temperature (°C)	35
Total Air Volume (m³/h）	218543
Dimensions (mm)	525018742100
Noise Level @25°C, 16m	70
Shipping Weight (kg)	2250
Operating Pressure (MPa)	0.4

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
