Hydro Cooling Suite AP-H20-A Support 28 Antminer Hydro Miners Scalable Mining
Price range: $9,800.00 through $12,000.00
Hydro Cooling Suite AP-H20-A is designed for Antminer hydro miners, offering efficient storage and cooling for up to 28 units, making it ideal for warehouse stacking.Hydro Cooling Kit AP-H20-A
- Hydro Cooling Kit AP-H20-A
- Manufacturer Warranty
Trusted By

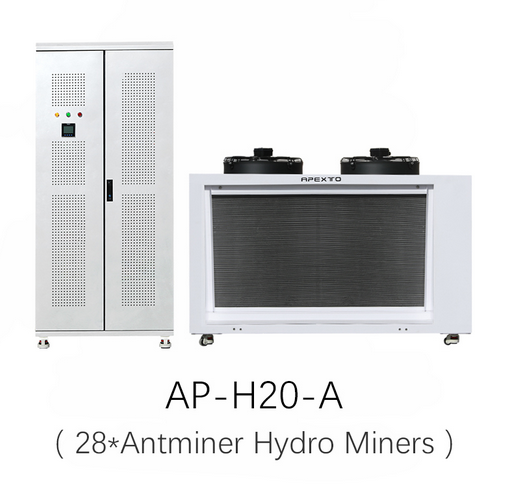

Hydro AP-H20-A
Hydro AP-H20-A is part of our deployable mining series, specifically designed for large-scale cryptocurrency mining operations. Optimized for Antminer hydro miners, it can support up to 28 units, making it ideal for high-density setups. The kit includes a water cooling cabinet, a dry cooling tower, and a pump station. The AP-H20-A is perfect for cryptocurrency miners looking to scale their operations and optimize cooling efficiency in warehouse environments. It offers a space-saving solution that can support high-capacity mining setups, boosting overall mining productivity and reducing energy consumption compared to traditional air cooling methods.
Featuring advanced water cooling technology, the AP-H20-A ensures efficient heat dissipation by circulating deionized water, which is far more effective than air cooling systems for maintaining stable temperatures. This hydro cooling system maximizes the performance of each mining rig, ensuring that the Antminer hydro miners run at their best while minimizing the risk of overheating.
Cooling Solutions For Mining Operations:

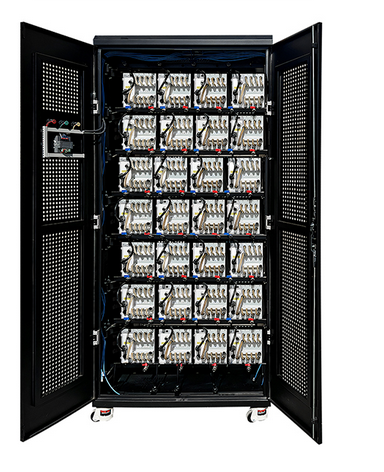

Hydro Cooling Cabinet
The Hydro Cooling Cabinet uses a closed-loop water system, eliminating extra water use and providing an eco-friendly way to maintain optimal temperatures in mining setups.
· Dry-Cooler
The Dry-Cooler features a closed-loop, evaporative cooling system, offering efficient temperature control for large-scale mining operations.

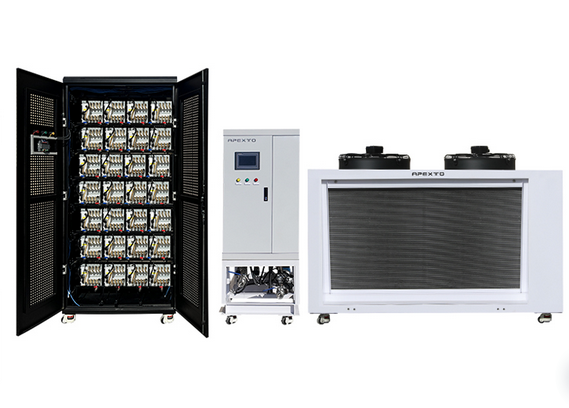

· Hydro Cooling System
The Hydro Cooling System combines the Cooling Cabinet and Dry-Cooler technologies, delivering a flexible, efficient, and cost-effective cooling solution for demanding mining environments
Hydro Miner Operating Temperature:
AP-HC20-A Product Detail:
For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
Heat Recovery System:
Our product also offers a heating version. For heating needs, we provide a customized CDU (Cooling Distribution Unit) integrated into the pump station. This versatile solution delivers efficient, sustainable, and reliable heating performance, making it suitable for a wide range of applications.
Application Scenarios:
Specification:
1. AP-H20-A Tank & Dry-Cooler
| Model | AP-H20-A |
| Heat Dissipation Capacity | 200kW |
| Miners Capacity | 28* Antminer s19 s21 |
| Circulation Mode | Single Mode / Dual Mode |
| Dimensions | 120cm(L) * 70cm(W) * 180cm(H) (CABINET) 100cm(L) * 90cm(W) * 210cm(H) (DRY COOLER) |
| Weight | 300KG (CABINET) 320KG (DRY COOLER) |
| Coolant | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp | 40 / 50 °C |
| External Cooling | Dry Cooler |
| Fluid Flow Rate | 20 m³/h |
| Max Power Load | 200kW |
| Input Voltage | 3 Phase 380-415V 50/60Hz |
| Output Voltage | 3 Phase 380-415V 50/60Hz |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |

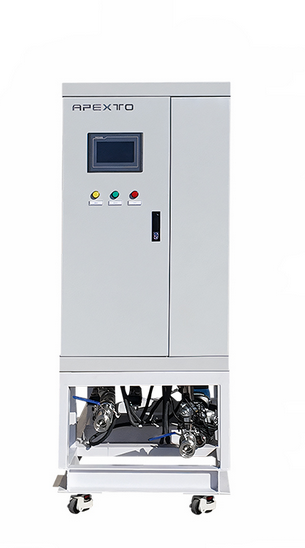

2. AP-H20-A CDU
| Model | AP-H20-A CDU |
| Power (Main pump power) | 4.75KW |
| Rotational speed | 2900 r/min |
| Power (Auxiliary pump power) | 0.55KW |
| Fluid Flow Rate | 20 m³/h |
| Circulation Mode | Single Mode / Dual Mode |
| Dimensions | 120cm(L) * 70cm(W) * 180cm(H) (CDU) |
| Weight | 350KG (CDU) |
| Coolant | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp | 40 / 50 °C |
| Input Voltage | 3 Phase 380-415V 50/60Hz |
| Output Voltage | 3 Phase 380-415V 50/60Hz |
| Monitoring and Management | 1. Smart PDU 2. PLC Control System |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |
| Certification | CE |
| Extras | High-Quality Water Pump / All Stainless Steel |
For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
| Specification | Cabinet+CDU+Dry Cooler (Cooling + Heating Version), Cabinet+CDU+Dry Cooler (Cooling Only Version) |
|---|
