Hydro Cooling Suite AP-H12 Support 12 Antminer Hydro Miners Home Mining
Price range: $2,785.00 through $3,850.00
The Hydro Cooling Suite AP-H12 supports up to 12 Antminer hydro miners, providing an enhanced cooling solution for larger home mining operations while maintaining optimal space efficiency.
- AP-H12
- Manufacturer Warranty
Trusted By

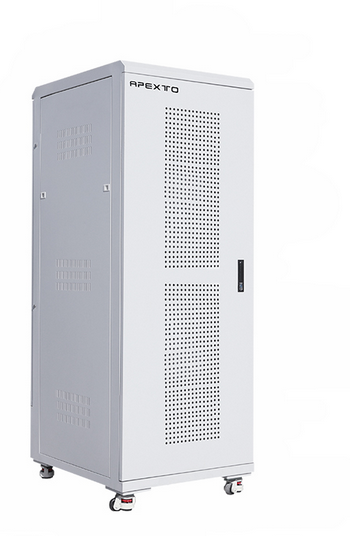

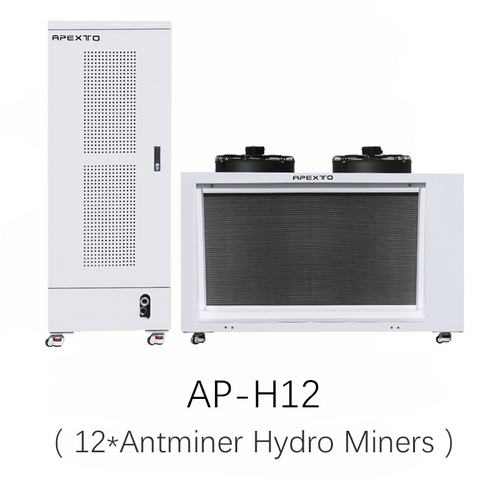

Hydro Cooling AP-H12
Hydro Cooling AP-H12 is a top-tier solution in our home-use series, supporting up to 12 Antminer hydro miners for larger home mining operations. It includes both a hydro cooling cabinet and a dry cooling tower, providing superior cooling performance to ensure stable and efficient operation in more demanding setups. This system uses a high-performance water cooling loop to circulate deionized water, ensuring superior heat dissipation even during extended mining sessions. Its design balances cooling power with space efficiency, making it perfect for intermediate to advanced miners looking to scale their operations. The AP-H12 offers an effective and reliable solution for keeping mining rigs cool, ensuring high performance and longevity with minimal noise and maintenance.
Operating Temperature:
Product Detail:
Heat Recovery System:
Our product also offers a heating version. If you need heating, we provide it through a customized CDU (Cooling Distribution Unit) integrated into the hydro cooling cabinet. This versatile solution provides efficient, sustainable, and reliable heating performance for a wide range of applications.
Specification:
1. AP-H12 Tank
| Model | AP-H12 |
| Heat Dissipation Capacity | 70kW |
| Miners Capacity | 12* Antminer s19 s21hyd. |
| Circulation Mode | Single Mode / Dual Mode |
| Dimensions | 120cm(L) * 70cm(W) * 180cm(H) CABINET) |
| Weight | 165KG (CABINET) |
| 210KG (DRY COOLER) | |
| Coolant | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp | 40 / 50 °C |
| External Cooling | Dry Cooler |
| Fluid Flow Rate | 5 m³/h |
| Max Power Load | 70kW |
| Input Voltage | 3 Phase 380-415V 50/60Hz |
| Output Voltage | 3 Phase 380-415V 50/60Hz |
| Monitoring and Management | 1. Smart PDU |
| 2. PLC Control System | |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |
| Certification | CE |
| Extras | High-Quality Water Pump / All Stainless Steel / EPDM Hose / Quick Connector |
2. AP-H12 Dry Cooler
| Dimensions | 120cm(L) * 70cm(W) * 180cm(H) |
| Miners Capacity | 4.75KW |
| Cooling Capacity | 200kW |
| Circulation Mode | Single Mode / Dual Mode |
| Input Voltage | 3 Phase 380-415V 50/60Hz |
| Output Voltage | 3 Phase 380-415V 50/60Hz |
| Cooling Medium | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp | 40 / 50 °C |
| Fluid Flow Rate | 20 m³/h |
| Monitoring and Management | 1. Smart PDU 2. PLC Control System |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |
For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
| Specification | Hydro-Cooling + Heating Version, Hydro-Cooling Only CE Version(Single Fan), Hydro-Cooling Only UL Version (Single Fan) |
|---|
