Immersion Cooling Kit C6 Support 6 ASIC Miners
Price range: $105.00 through $3,998.00
- FogHashing C6
- Manufacturer Warranty
Trusted By

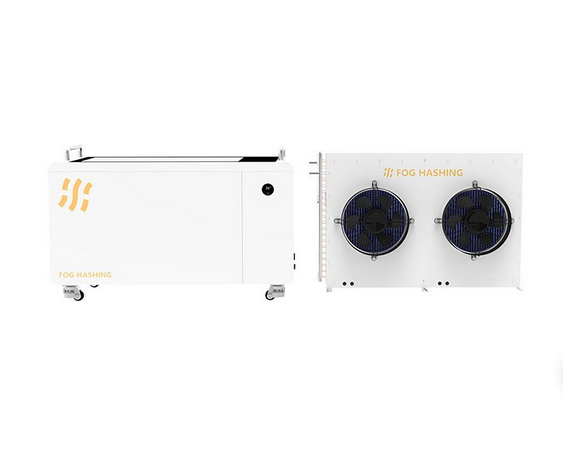

Immersion Cooling Kit C6
Immersion Cooling Kit C6 Support 6 ASICs inside (Multiple models of Antminer, Whatsminer and Avalon) | Smart Adjustment designed for Medium Mining and Home Mining to Large-scale Mining Solutions.
Product Details:
Effortless Deployment & Independence:
- Streamlined design that eliminates the need for secondary heat exchange methods, relying solely on oil
circulation. - A convenient all-in-one configuration, combining a single tank with a dry cooler, requiring only the installation of tubing and wiring.
Specification:
1. C6 Tank
| Outsize | 1185(L)*530(W)*760(H)mm |
| Insize | 912(L)*404(W)*355(H)mm |
| G.W. | 110kg |
| Coolant Volume | 200L |
| Cycle Mode | Single Loop |
| Input Voltage | Single-Phase 200-240V 50/60Hz |
| Power Usage (Max) | 800-1100W |
| Noise | 45dB(A)@10m |
| Flow | 90L/min |
| Qty of Miner(s) | 6*S19/S21 8*M50/M60 |
| PDU | Single-phase: 220V 125A 6C19 Three-phase: 380V 63A 6C19 |

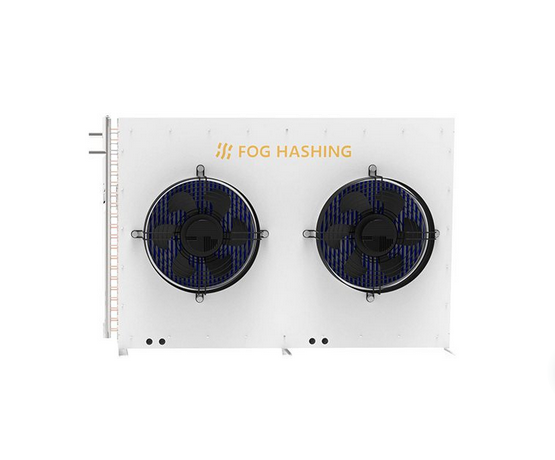

2. C6 Dry Cooler
| Outer Size | 1680(L)*400(W)*1015(H)mm |
| Input Voltage | Single-Phase 200-240V 50/60Hz |
| Power Usage (Max) | 10-1400W(220V 50Hz) |
| G.W. | 110kg |
| Cooling Capacity | 24kW@35℃ |
| Fluid In / Out | 63-53°C |
| Electrical Interface | C14 *1 |
| Fan Type | EC Fan |
| Noise | 65dB(A)@10m (MAX) |
For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
| Specification | C6 Dry Cooler(24kW@35℃), C6 Tank, C6 Tank + Dry Cooler, C6 Tank + Dry Cooler + PDU, C6 Tank + Dry Cooler + PDU + Coolant, Smart PDU 6C19 Single-Phase/3-Phase, C6 Oil Pipe 2*10m |
|---|
