Hydro Cooling Suite AP-H20-M Support 20 Whatsminer Hydro Miners Scalable Mining

Price range: $9,800.00 through $12,000.00

Hydro Cooling Suite AP-H20-M is tailored for Whatsminer hydro miners, providing optimal cooling and space for up to 20 M53 or M66 units, perfect for large-scale mining setups.

AP-H20-M
Manufacturer Warranty

Trusted By

Specification

Description
Additional information

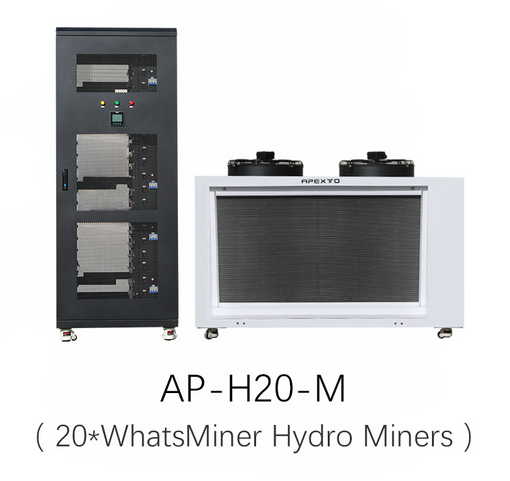

Hydro Cooling AP-H20-M

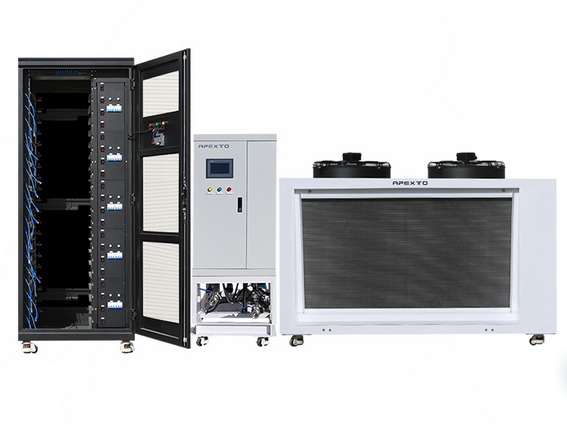

Hydro Cooling AP-H20-M is a high-performance water cooling solution in our deployable mining series, specifically tailored for Whatsminer hydro miners. It can house up to 20 M53 or M66 units, making it a robust choice for large-scale cryptocurrency mining operations. The kit includes a water cooling cabinet, a dry cooling tower, and a pump station. The cabinet employs a state-of-the-art hydro cooling system, utilizing circulating deionized water to efficiently manage heat and maintain optimal performance. With the rising demand for efficient cooling in cryptocurrency mining, the AP-H20-M provides an ideal solution for managing high-performance miners, ensuring they run smoothly without overheating.

This water-cooled cabinet is designed to optimize space and cooling capacity, making it perfect for industrial-scale mining facilities or large warehouses. By adopting the AP-H20-M, cryptocurrency miners can improve their operational efficiency, reduce energy consumption, and extend the life of their WhatsMiner hydro miners, all while maintaining top-level mining performance.

Cooling Solutions For Mining Operations:

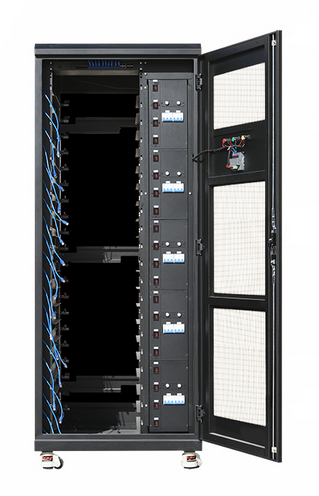

Hydro Cooling Cabinet

The Hydro Cooling Cabinet uses a closed-loop water system, eliminating extra water use and providing an eco-friendly way to maintain optimal temperatures in mining setups.

· Dry-Cooler

The Dry-Cooler features a closed-loop, evaporative cooling system, offering efficient temperature control for large-scale mining operations.

· Hydro Cooling System

The Hydro Cooling System combines the Cooling Cabinet and Dry-Cooler technologies, delivering a flexible, efficient, and cost-effective cooling solution for demanding mining environments.

Hydro Miner Operating Temperature:

AP-HC20-M Product Detail:

Heat Recovery System:

Our product also offers a heating version. For heating needs, we provide a customized CDU (Cooling Distribution Unit) integrated into the pump station. This versatile solution delivers efficient, sustainable, and reliable heating performance, making it suitable for a wide range of applications.

Application Scenarios:

Specification:

1. AP-H20-M Tank & Dry-Cooler

Model	AP-H20-M
Heat Dissipation Capacity	200kW
Miners Capacity	20 * M53/M63/M63s
Circulation Mode	Single Mode / Dual Mode
Dimensions	120cm(L) * 70cm(W) * 180cm(H) (CABINET)
	100cm(L) * 85cm(W) * 210cm(H) (DRY COOLER)
Weight	240KG (CABINET) 320KG (DRY COOLER)
Coolant	Pure Water / Soft water + Antifreeze + Corrosion Inhibitor
Max Inlet/Outlet Temp	50 / 60 °C
External Cooling	Dry Cooler
Fluid Flow Rate	20 m³/h
Max Power Load	200kW
Input Voltage	3 Phase 380-480V 50/60Hz
Output Voltage	3 Phase 380-480V 50/60Hz
Monitoring and Management	1. Smart PDU 2. PLC Control System
Ambient Temp	-25°C ~ 45°C
Design Pressure	0.3 MPa
Certification	CE
Extras	High-Quality Water Pump / All Stainless Steel / EPDM Hose / Quick Connector

2. AP-H20-M CDU

Model	AP-H20-M CDU
Power (Main pump power)	4.75KW
Rotational speed	2900 r/min
Power (Auxiliary pump power)	0.55KW
Fluid Flow Rate	20 m³/h
Circulation Mode	Single Mode / Dual Mode
Dimensions	120cm(L) * 70cm(W) * 180cm(H) (CDU)
Weight	350KG (CDU)
Coolant	Pure Water / Soft water + Antifreeze + Corrosion Inhibitor
Max Inlet/Outlet Temp	40 / 50 °C
Input Voltage	3 Phase 380-415V 50/60Hz
Output Voltage	3 Phase 380-415V 50/60Hz
Monitoring and Management	1. Smart PDU 2. PLC Control System
Ambient Temp	-25°C ~ 45°C
Design Pressure	0.3 MPa
Certification	CE
Extras	High-Quality Water Pump / All Stainless Steel

For most areas, the liquid cooling equipment will be shipped to you via sea freight. Ports and receiving points in different regions will incur different shipping charges. It is recommended that you contact customer service to confirm address details and calculate shipping costs before placing an order.
